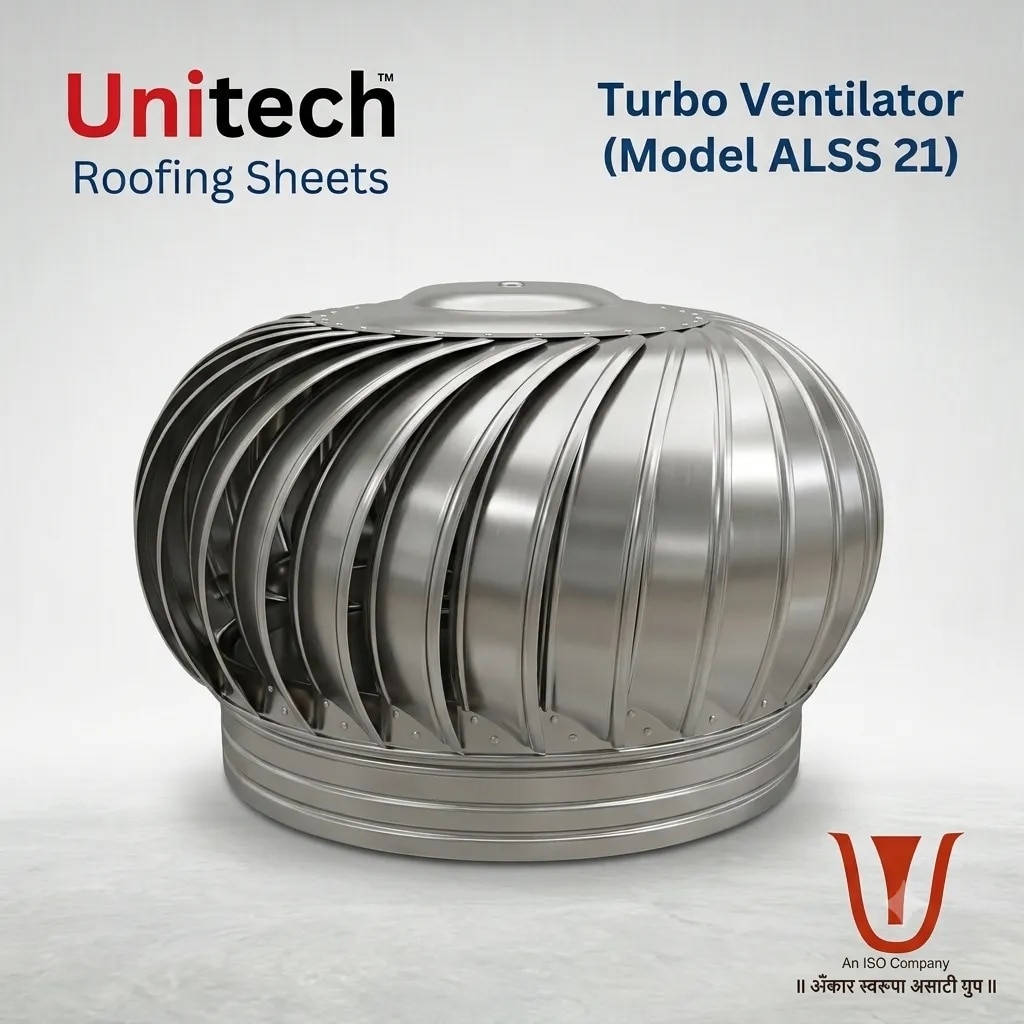

Turbo Ventilator (Model ALSS 21)

TURBOLITE Turbo Ventilator (Model ALSS 21) – Unitech Fibre Glass Enterprises, Indore

The TURBOLITE Turbo Ventilator (Model ALSS 21) from Unitech Fibre Glass Enterprises, Indore is a wind-driven roof ventilation solution designed to improve natural air circulation in factories, warehouses, industrial sheds, workshops, commercial buildings, and other enclosed spaces.

Featuring a 24-inch turbine diameter, 21-inch throat diameter, and 39 aluminium vanes, the ALSS 21 is designed to encourage the removal of accumulated hot, humid, and stagnant air through roof-level ventilation. Its twin-bearing mechanism supports smooth, low-friction rotation, even when wind velocity is relatively low.

The combination of aluminium turbine blades, stainless-steel components, zinc-plated G.I. structural parts, and sealed 6001 2RS bearings makes the ALSS 21 a practical choice for industrial and commercial ventilation requirements.

Technical Specifications-

Specification Details

Product Name TURBOLITE Turbo Ventilator

Model ALSS 21

Turbine Diameter 24 Inches

Throat Diameter 21 Inches

Height 16 Inches

Vanes/Blades 39 Vanes, Aluminium

Base Ring Stainless Steel

Top Plate Stainless Steel

Rotation Twin bearing system for frictionless rotation, even at low wind velocity

Center Shaft G.I. High Carbon Steel with Zinc Plating

Inner Arms G.I. with Electro Zinc Plating

Outer Arms G.I. with Electro Zinc Plating

Number of Bearings 2

Bearing Type 6001 2RS, Self-Lubricating & Sealed

Rivets Aluminium Alloy with Washer

Key Features of TURBOLITE ALSS 21-

24-inch turbine diameter for roof-level natural ventilation.

21-inch throat diameter for effective air outlet movement.

Equipped with 39 aluminium vanes/blades.

Twin-bearing design helps provide smooth and low-friction turbine rotation.

Designed to rotate effectively even at low wind velocity.

Stainless-steel base ring and top plate provide a strong and durable assembly.

G.I. high-carbon steel center shaft with zinc plating.

Electro-zinc-plated G.I. inner and outer arms.

Uses 2 sealed 6001 2RS bearings.

Bearings are self-lubricating and sealed for convenient operation.

Aluminium-alloy rivets with washers provide secure assembly.

Benefits of Aluminium Turbo Ventilator-

The TURBOLITE ALSS 21 supports natural ventilation by utilizing available wind movement to rotate the turbine. This helps facilitate the upward movement of warm and stagnant air from enclosed spaces.

For factories and industrial buildings where heat, humidity, and poor air circulation can affect workplace comfort, roof-mounted turbo ventilators can provide a useful passive ventilation approach without depending on conventional electrically powered exhaust fans.

Ideal Applications-

The TURBOLITE ALSS 21 can be used for natural ventilation in:

Factories and manufacturing units

Industrial sheds

Warehouses and godowns

Engineering and fabrication workshops

Commercial buildings

Garages and service centers

Production areas

Storage facilities

Large halls

Utility and agricultural structures

Turbo Ventilator in Indore

Unitech Fibre Glass Enterprises, Indore offers TURBOLITE ventilation solutions for industrial, commercial, and building applications. The ALSS 21 Turbo Ventilator combines aluminium vanes with stainless-steel and zinc-plated G.I. components to provide a practical roof ventilation solution.

If you are looking for a turbo ventilator in Indore, aluminium turbo ventilator in Indore, industrial roof ventilator, natural ventilation system, factory roof ventilator, warehouse ventilator, or turbo ventilator supplier in Indore, the TURBOLITE ALSS 21 can be considered for your ventilation requirements.

Frequently Asked Questions-

Q1. What is the TURBOLITE ALSS 21 Turbo Ventilator?

The TURBOLITE ALSS 21 is a wind-driven roof ventilator designed to support natural air circulation and help remove hot and stagnant air from enclosed industrial and commercial spaces.

Q2. What is the turbine size of the ALSS 21?

The ALSS 21 has a 24-inch turbine diameter and a 21-inch throat diameter.

Q3. How many blades are provided in the ALSS 21?

The ventilator features 39 aluminium vanes/blades.

Q4. Does the ALSS 21 work at low wind velocity?

Its twin-bearing mechanism is designed for smooth, low-friction rotation even at low wind velocity, helping the turbine respond to available airflow.

Q5. Which bearings are used in the ALSS 21?

The model uses two 6001 2RS self-lubricating and sealed bearings.

Q6. Where can the ALSS 21 be installed?

It can be considered for factories, industrial sheds, warehouses, godowns, workshops, commercial premises, production areas, garages, and other structures requiring natural roof ventilation.

Q7. Where can I get a turbo ventilator in Indore?

For turbo ventilator requirements in Indore, customers can contact Unitech Fibre Glass Enterprises for information about the TURBOLITE ALSS 21 and other available ventilation models.
