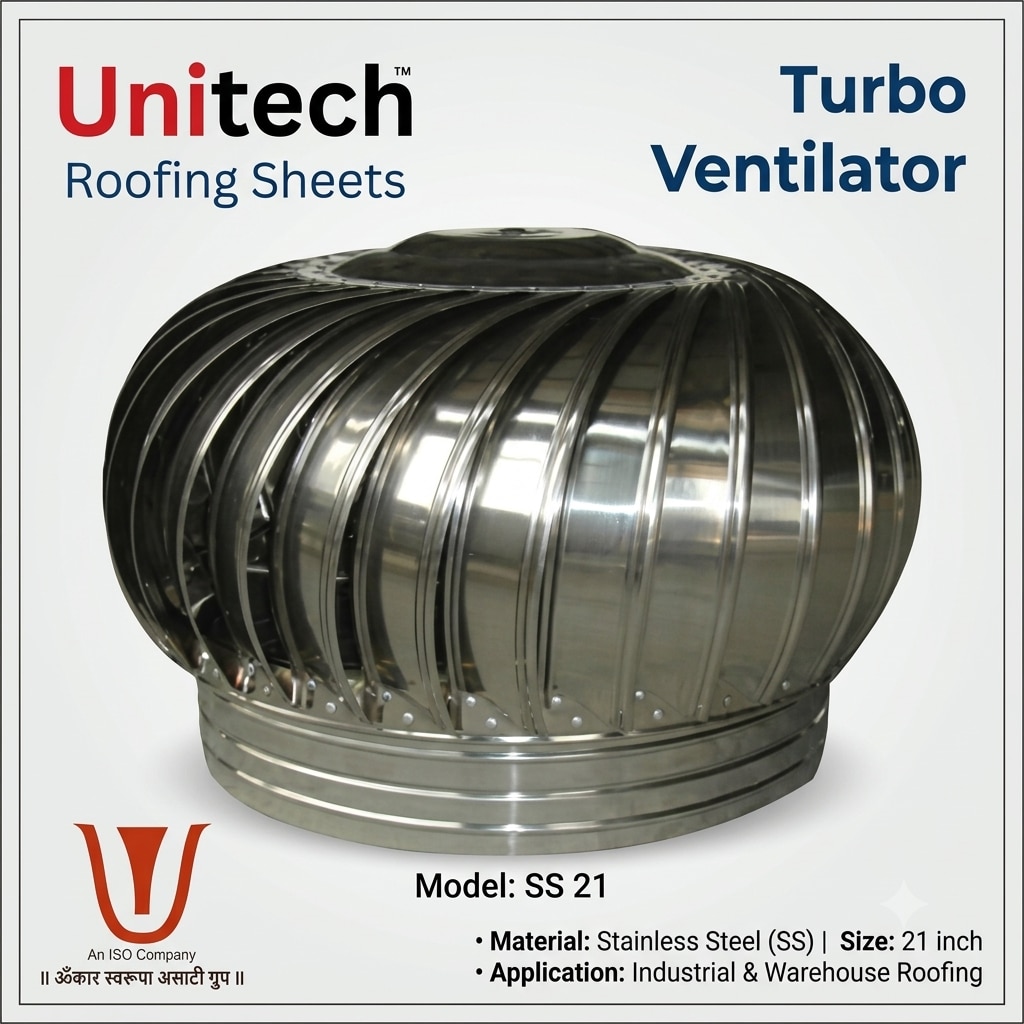

Turbo Ventilator (Model SS 21)

TURBOLITE Turbo Ventilator (Model SS 21) – Unitech Fibre Glass Enterprises, Indore

The TURBOLITE Turbo Ventilator (Model SS 21) from Unitech Fibre Glass Enterprises, Indore is a durable and efficient roof-mounted ventilation solution designed to improve air circulation and remove accumulated heat, humidity, fumes, and stale air from enclosed spaces. With a 24-inch turbine diameter, 21-inch throat diameter, and 39 stainless-steel vanes, this turbo ventilator is suitable for industrial, commercial, warehouse, workshop, and other large indoor spaces.

Its specially designed twin-bearing system enables smooth, low-friction rotation even at low wind velocity, helping maintain continuous natural ventilation without requiring conventional electrical power for operation. The stainless-steel construction of the base ring and top plate provides durability for demanding installation environments.

Key Features

Model: SS 21

Turbine Diameter: 24 Inches

Throat Diameter: 21 Inches

Overall Height: 16 Inches

39 Vanes/Blades: Stainless Steel, 0.3 mm thickness

Base Ring: Stainless Steel

Top Plate: Stainless Steel

Rotation: Twin-bearing mechanism for smooth, frictionless rotation at low wind velocity

Center Shaft: G.I. high-carbon steel with zinc plating

Inner Arms: G.I. with electro-zinc plating

Outer Arms: G.I. with electro-zinc plating

Number of Bearings: 2

Bearing Type: 6001 2RS, self-lubricating and sealed

Rivets: Aluminium alloy with washer

Benefits of TURBOLITE Turbo Ventilator--

The TURBOLITE SS 21 helps create a healthier and more comfortable indoor environment by allowing hot and contaminated air to escape naturally. Its aerodynamic turbine design rotates with available wind movement, supporting continuous roof-level air extraction.

The 39 stainless-steel vanes provide a robust turbine structure, while the sealed 6001 2RS bearings are designed for smooth and reliable operation with reduced maintenance requirements.

Suitable Applications--

The TURBOLITE Turbo Ventilator can be used for:

Industrial factories and manufacturing units

Warehouses and storage facilities

Workshops and fabrication units

Commercial buildings

Garages and service centers

Godowns and industrial sheds

Production areas-

Large halls and enclosed workspaces

Agricultural and utility structures

Why Choose Unitech Fibre Glass Enterprises in Indore?

Unitech Fibre Glass Enterprises, Indore offers ventilation solutions designed for practical industrial and commercial applications. The TURBOLITE SS 21 combines stainless-steel turbine components, zinc-plated structural parts, sealed bearings, and a low-friction rotation mechanism to provide an effective natural ventilation solution.

For businesses searching for a turbo ventilator supplier in Indore, industrial roof ventilator in Indore, stainless steel turbo ventilator, factory ventilation system, or natural roof ventilation solution, TURBOLITE SS 21 is a practical option for improving air movement and reducing heat buildup.

Frequently Asked Questions (FAQs)-

Q1. What is the TURBOLITE SS 21 Turbo Ventilator?

TURBOLITE SS 21 is a roof-mounted natural ventilation device designed to extract hot, humid, and stale air from industrial and commercial spaces using wind-driven turbine rotation.

Q2. What is the turbine diameter of the SS 21 model?

The TURBOLITE SS 21 has a 24-inch turbine diameter and a 21-inch throat diameter.

Q3. How many blades does the TURBOLITE SS 21 have?

It features 39 stainless-steel vanes/blades, manufactured with 0.3 mm thick stainless steel.

Q4. Does the turbo ventilator work at low wind speed?

Yes. Its twin-bearing arrangement is designed to support smooth, low-friction rotation even at relatively low wind velocity.

Q5. Where can TURBOLITE SS 21 be installed?

It is suitable for factories, warehouses, workshops, godowns, industrial sheds, commercial buildings, garages, and other spaces requiring natural roof ventilation.

Q6. Where can I find a turbo ventilator supplier in Indore?

Businesses looking for turbo ventilators in Indore can contact Unitech Fibre Glass Enterprises for information about the TURBOLITE SS 21 and other ventilation requirements.
