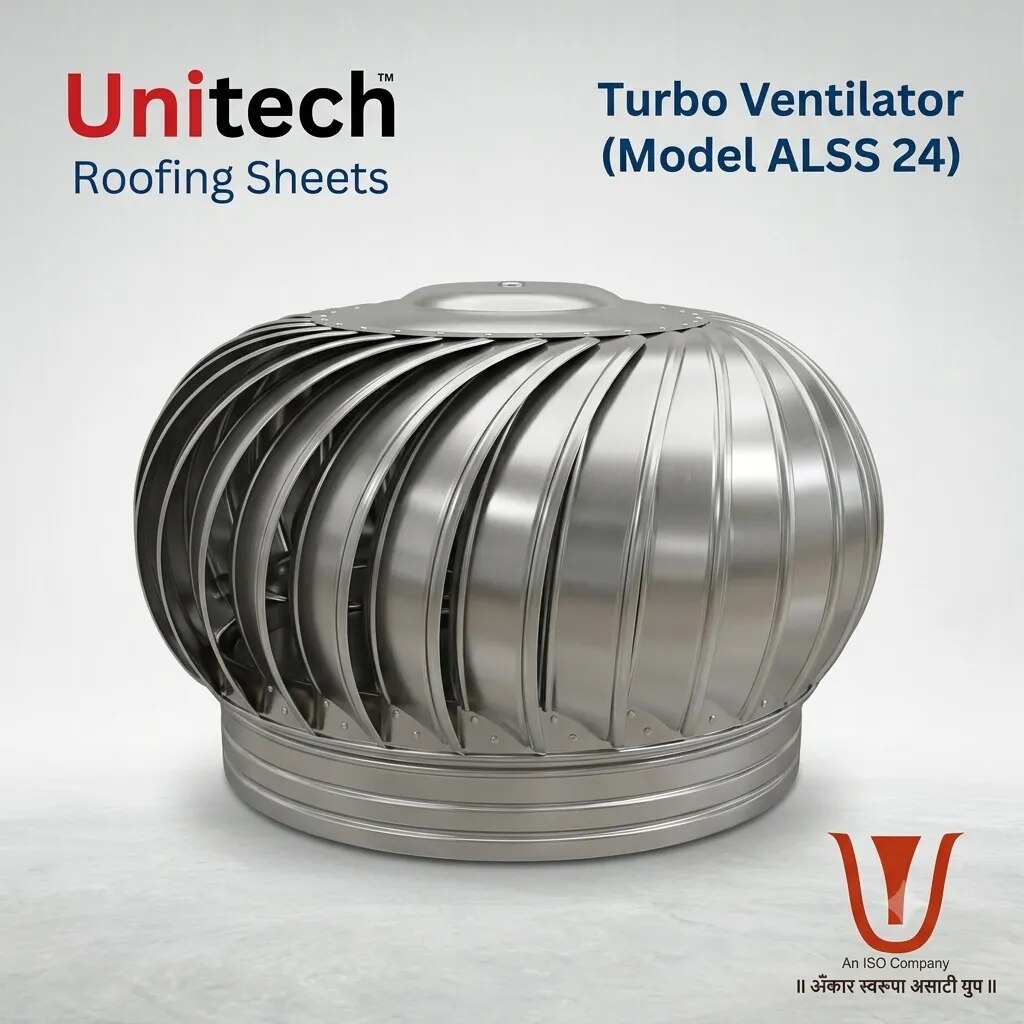

Turbo Ventilator (Model ALSS 24)

TURBOLITE Turbo Ventilator (Model ALSS 24) – Unitech Fibre Glass Enterprises, Indore

The TURBOLITE Turbo Ventilator (Model ALSS 24) by Unitech Fibre Glass Enterprises, Indore is a robust roof ventilation solution designed to promote natural airflow and help remove excessive heat, humidity, fumes, and stale air from enclosed spaces. With a 28-inch turbine diameter and 24-inch throat diameter, this model is well suited for factories, warehouses, industrial sheds, workshops, commercial premises, and other large spaces where effective air circulation is important.

The ALSS 24 features 39 lightweight aluminium vanes/blades, combined with stainless-steel construction for the base ring and top plate. Its twin-bearing mechanism is engineered for smooth, low-friction rotation, allowing the turbine to operate effectively even at low wind velocity.

Technical Specifications-

Specification Details-

Product TURBOLITE Turbo Ventilator

Model ALSS 24

Turbine Diameter 28 Inches

Throat Diameter 24 Inches

Height 16 Inches

Vanes/Blades 39 Vanes, Aluminium

Base Ring Stainless Steel

Top Plate Stainless Steel

Rotation Twin bearing for smooth, frictionless rotation even at low wind velocity

Center Shaft G.I. High Carbon Steel with Zinc Plating

Inner Arms G.I. with Electro Zinc Plating

Outer Arms G.I. with Electro Zinc Plating

Number of Bearings 2

Bearing Type 6001 2RS, Self-Lubricating & Sealed

Rivets Aluminium Alloy with Washer

Key Features & Advantages-

28-inch turbine diameter for effective roof-level air movement.

24-inch throat diameter designed for efficient ventilation.

39 aluminium vanes provide a lightweight and durable turbine assembly.

Twin-bearing arrangement supports smooth and low-friction rotation.

Designed to rotate even at low wind velocity.

Stainless-steel base ring and top plate provide durability and corrosion resistance.

Zinc-plated G.I. components add protection to the supporting structure.

6001 2RS sealed bearings are self-lubricating and designed for reliable operation.

Helps expel hot, humid and stale air from enclosed areas.

Suitable for industrial and commercial natural ventilation requirements.

Applications of ALSS 24 Turbo Ventilator--

The TURBOLITE ALSS 24 can be considered for a wide range of applications, including:

Manufacturing factories

Industrial sheds

Warehouses and godowns

Engineering workshops

Fabrication units

Commercial buildings

Garages and service centers

Production facilities

Large halls

Storage areas

Agricultural and utility buildings

Natural Roof Ventilation for Industrial Spaces

Heat can accumulate quickly inside factories, warehouses, and enclosed industrial structures. A roof-mounted turbo ventilator provides a practical way to encourage the movement of warm and stagnant air toward the outside.

The TURBOLITE ALSS 24 uses wind-driven turbine movement rather than relying on conventional electrically powered exhaust fans. Its low-friction twin-bearing arrangement helps the turbine rotate smoothly, supporting continuous natural air circulation whenever suitable airflow is available.

Turbo Ventilator Supplier in Indore

Unitech Fibre Glass Enterprises, Indore provides ventilation solutions for industrial, commercial, and building applications. The TURBOLITE ALSS 24 Turbo Ventilator is designed with a combination of aluminium vanes, stainless-steel components, zinc-plated G.I. parts, and sealed bearings for dependable roof ventilation.

If you are searching for a turbo ventilator in Indore, aluminium turbo ventilator in Indore, industrial roof ventilator, natural roof ventilation system, factory ventilation solution, warehouse ventilator, or turbo ventilator supplier in Indore, the TURBOLITE ALSS 24 is a suitable model to consider.

Frequently Asked Questions--

Q1. What is the TURBOLITE ALSS 24 Turbo Ventilator?

The TURBOLITE ALSS 24 is a roof-mounted, wind-driven turbo ventilator designed to improve natural air circulation and help exhaust hot and stagnant air from enclosed spaces.

Q2. What is the turbine diameter of the ALSS 24?

The turbine diameter is 28 inches, while the throat diameter is 24 inches.

Q3. How many blades does the ALSS 24 have?

The model has 39 aluminium vanes/blades.

Q4. Can the ALSS 24 rotate at low wind velocity?

Yes. The model uses a twin-bearing arrangement designed to provide smooth, low-friction rotation even at low wind velocity.

Q5. What type of bearings are used?

It uses two 6001 2RS self-lubricating and sealed bearings.

Q6. Where is the ALSS 24 turbo ventilator commonly used?

It can be used in factories, warehouses, workshops, industrial sheds, godowns, commercial buildings, garages, production areas, and other enclosed structures requiring natural ventilation.

Q7. Where can I buy a turbo ventilator in Indore?

For turbo ventilator requirements in Indore, customers can contact Unitech Fibre Glass Enterprises to discuss the TURBOLITE ALSS 24 and other ventilation solutions.
